全球首家上百萬進口晶振代理商

深圳市康華爾電子有限公司

國際進口晶振品牌首選康華爾

首頁 Skyworks晶振

Skyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAG

Skyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAGSkyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAG

產品簡介

Skyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAG，尺寸5.0x3.2mm，頻率250MHZ，輸出邏輯LVDS，電壓3.3V，頻率穩定性20ppm,思佳訊壓控晶振，六腳差分晶振，差分晶振LVDS，貼片差分晶振，石英差分晶振，差分有源晶振，VCXO壓控晶振，壓控差分振蕩器，差分晶體振蕩器，貼片壓控振蕩器，有源壓控晶振，低功耗差分晶振，低損耗差分晶振，低電壓差分晶振，低相位差分晶振，低相噪差分晶振，低抖動差分晶振，高質量差分晶振，高性能差分晶振，廣播視頻專用差分晶振，電信差分晶振，交換機差分晶振，路由器差分晶振，ASIC時鐘生成差分晶振，具有低抖動低電壓高精度的特點。

OSC晶振產品很適合用于各個領域之中，特別適合用于廣播視頻，電信，交換機/路由器，F(xiàn)PGA/ASIC時鐘生成，娛樂設備，光通信等領域。Skyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAG.

產品詳情

1

Skyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAG，尺寸5.0x3.2mm，頻率250MHZ，輸出邏輯LVDS，電壓3.3V，頻率穩定性20ppm,思佳訊壓控晶振，六腳差分晶振，差分晶振LVDS，貼片差分晶振，石英差分晶振，差分有源晶振，VCXO壓控晶振，壓控差分振蕩器，差分晶體振蕩器，貼片壓控振蕩器，有源壓控晶振，低功耗差分晶振，低損耗差分晶振，低電壓差分晶振，低相位差分晶振，低相噪差分晶振，低抖動差分晶振，高質量差分晶振，高性能差分晶振，廣播視頻專用差分晶振，電信差分晶振，交換機差分晶振，路由器差分晶振，ASIC時鐘生成差分晶振，具有低抖動低電壓高精度的特點。

OSC晶振產品很適合用于各個領域之中，特別適合用于廣播視頻，電信，交換機/路由器，F(xiàn)PGA/ASIC時鐘生成，娛樂設備，光通信等領域。Skyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAG.

2

Skyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAG 參數表

Parameter Symbol Test Condition Min Typ Max Unit
Supply Voltage VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75 V
Supply Current IDD CMOS, 100 MHz,
single-ended 		— 24 29 mA
LVDS
(output enabled) 		— 22 26 mA
LVPECL
(output enabled) 		— 42 46 mA
HCSL
(output enabled) 		— 44 47 mA
Tristate
(output disabled) 		— — 22 mA
OE “1” Setting VIH See Note 0.80 x VDD — — V
OE “0” Setting VIL See Note — — 0.20 x VDD V
OE Internal Pull-Up/
Pull-Down Resistor* 		RI — 45 — kΩ
Operating Temperature TA –40 — 85 oC
Parameter Symbol Test Condition Min Typ Max Unit
Control Voltage Range VC 0.1 x VDD VDD/2 0.9 x VDD V
Control Voltage Tuning Slope
(10 to 90% VDD) 		Kv Positive slope,
ordering option 		60, 90, 120, 150 ppm/V
Kv Variation Kv_var — — ±10 %
Control Voltage Linearity LVC BSL –5 ±1 +5 %
Modulation Bandwidth BW — 10 — kHz
Vc Input Impedance ZVC — 100 — kΩ
Parameter Symbol Test Condition Min Typ Max Unit
Nominal Frequency FO CMOS, Dual CMOS 0.1 — 212.5 MHz
FO LVDS/LVPECL/HCSL
250
MHz
Temperature Stability ST TA= –40 to +85oC –20 — +20 ppm
Aging A Frequency drift over 10 year life — — ±8.5 ppm
Minimum Absolute Pull Range APR Ordering option ±30, ±50,±80, ±100 ppm
Startup Time TSU Minimum VDDto output fre-
quency (FO) within specification 		— — 10 ms
Disable Time TD FO> 10 MHz — — 5 µs
FO< 10 MHz 40 µs
Enable Time TE FO> 10 MHz — — 20 µs
FO< 10 MHz 60 µs

3

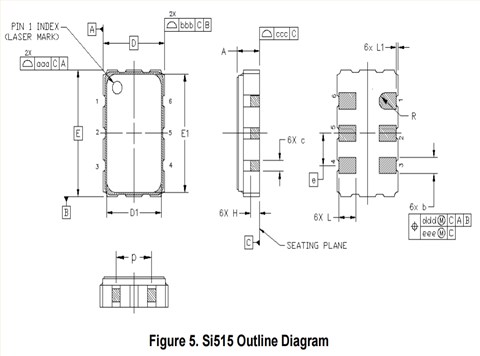

Skyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAG 尺寸圖

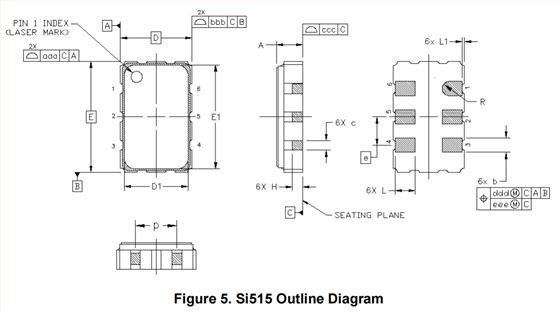

Si515 5032 Skyworks廣播視頻晶振,Si515低抖動差分晶振,515BBA250M000BAG

差分晶振產品特點：

支持來自的任何頻率100kHz至250MHz

低抖動操作

交付周期短：<2周

AT切基模晶體確保高可靠性/低老化

高電源噪聲抑制

1%控制電壓線性

可用CMOS、LVPECL、LVDS，和HCSL輸出

可選集成1:2 CMOS扇出緩存

3.3和2.5 V電源選項

行業標準5x7、3.2x5和2.5x3.2 mm包裝

無鉛/符合RoHS

可選擇的Kv（60、90、120，150 ppm/V）

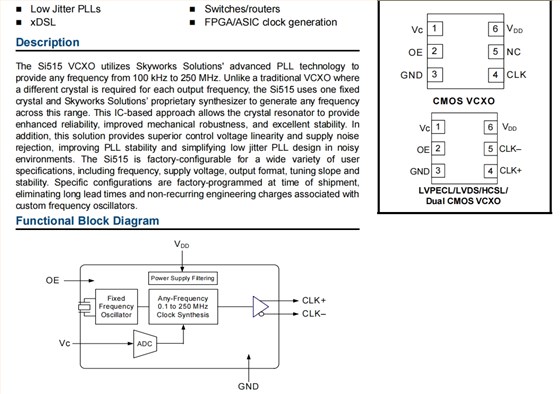

Si515 1Si515 2

Mfr Part # 晶振廠家 Description Series Frequency Output Voltage - Supply
515ABA10M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVPECL Si515 10 MHz LVPECL 3.3V
515BBA10M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si515 10 MHz LVDS 3.3V
515ABA10M0000BAG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVPECL Si515 10 MHz LVPECL 3.3V
515BBA10M0000BAG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si515 10 MHz LVDS 3.3V
515ACA77M7600AAGR Skyworks有源晶振 XTAL OSC VCXO 77.7600MHZ LVPECL Si515 77.76 MHz LVPECL 3.3V
515ACAM614400AAGR Skyworks有源晶振 XTAL OSC VCXO 6.1440MHZ LVPECL Si515 6.144 MHz LVPECL 3.3V
515BCA10M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si515 10 MHz LVDS 3.3V
515BCB70M6560AAGR Skyworks有源晶振 XTAL OSC VCXO 70.6560MHZ LVDS Si515 70.656 MHz LVDS 3.3V
515BDA27M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ LVDS Si515 27 MHz LVDS 3.3V
515BBA250M000BAGR Skyworks有源晶振 XTAL OSC VCXO 250.0000MHZ LVDS Si515 250 MHz LVDS 3.3V
515BCA250M000BAGR Skyworks有源晶振 XTAL OSC VCXO 250.0000MHZ LVDS Si515 250 MHz LVDS 3.3V
515ACA204M800AAGR Skyworks有源晶振 XTAL OSC VCXO 204.8000MHZ LVPECL Si515 204.8 MHz LVPECL 3.3V
515BBA250M000BAG Skyworks有源晶振 XTAL OSC VCXO 250.0000MHZ LVDS Si515 250 MHz LVDS 3.3V
515BCA250M000BAG Skyworks有源晶振 XTAL OSC VCXO 250.0000MHZ LVDS Si515 250 MHz LVDS 3.3V
515ADA131M072AAGR Skyworks有源晶振 XTAL OSC VCXO 131.0720MHZ LVPECL Si515 131.072 MHz LVPECL 3.3V
515ACA100M000BAGR Skyworks有源晶振 XTAL OSC VCXO 100.0000MHZ LVPECL Si515 100 MHz LVPECL 3.3V
515ACA61M4400BAGR Skyworks有源晶振 XTAL OSC VCXO 61.4400MHZ LVPECL Si515 61.44 MHz LVPECL 3.3V
515ACB78M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 78.0000MHZ LVPECL Si515 78 MHz LVPECL 3.3V
515BAA125M000BAGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ LVDS Si515 125 MHz LVDS 3.3V
515BAB125M000BAGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ LVDS Si515 125 MHz LVDS 3.3V
515BBA125M000BAGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ LVDS Si515 125 MHz LVDS 3.3V
515BBB125M000BAGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ LVDS Si515 125 MHz LVDS 3.3V
515BCA122M880BAGR Skyworks有源晶振 XTAL OSC VCXO 122.8800MHZ LVDS Si515 122.88 MHz LVDS 3.3V
515BCA125M000BAGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ LVDS Si515 125 MHz LVDS 3.3V
515BCA27M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ LVDS Si515 27 MHz LVDS 3.3V
515BDA26M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 26.0000MHZ LVDS Si515 26 MHz LVDS 3.3V
515BDA27M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ LVDS Si515 27 MHz LVDS 3.3V
515FBB125M000BAGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ LVDS Si515 125 MHz LVDS 2.5V
515FCA125M000BAGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ LVDS Si515 125 MHz LVDS 2.5V
515BBA122M880BAGR Skyworks有源晶振 XTAL OSCILLATOR Si515 122.88 MHz LVDS 3.3V
515BAA100M000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 100 MHz LVDS 3.3V
515ACA27M0000BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 27 MHz LVPECL 3.3V
515ACAM457000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 457 kHz LVPECL 3.3V
515ACA100M000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 100 MHz LVPECL 3.3V
515BCB100M000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 100 MHz LVDS 3.3V
515ACA10M0000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 10 MHz LVPECL 3.3V
515BCA122M880CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 122.88 MHz LVDS 3.3V
515BCA24M0000BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 24 MHz LVDS 3.3V
515ACA004723CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 24.545454 MHz LVPECL 3.3V
515BCA10M0000BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 10 MHz LVDS 3.3V
515ACA125M000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 125 MHz LVPECL 3.3V
515FCB125M000BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 125 MHz LVDS 2.5V
515ACA122M880CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 122.88 MHz LVPECL 3.3V
515BCB27M0000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 27 MHz LVDS 3.3V
515BCA100M000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 100 MHz LVDS 3.3V
515BCB25M0000BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 25 MHz LVDS 3.3V
515ACA204M800AAG Skyworks有源晶振 XTAL OSC VCXO 204.8000MHZ LVPECL Si515 204.8 MHz LVPECL 3.3V
515ACA156M250CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 156.25 MHz LVPECL 3.3V
515BCA156M250CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 156.25 MHz LVDS 3.3V
515BDA156M250CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 156.25 MHz LVDS 3.3V
515BCA148M500CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 148.5 MHz LVDS 3.3V
515BCA148M350CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 148.35 MHz LVDS 3.3V
515BAA004636BAG Skyworks晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 167.33165 MHz LVDS 3.3V
515BAA155M520CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 155.52 MHz LVDS 3.3V
515AAA174M687BAGR Skyworks有源晶振 XTAL OSC VCXO 174.6870MHZ LVPECL Si515 174.687 MHz LVPECL 3.3V
515AAA174M703BAGR Skyworks有源晶振 XTAL OSC VCXO 174.7030MHZ LVPECL Si515 174.703 MHz LVPECL 3.3V
515ABB212M500BAGR Skyworks有源晶振 XTAL OSC VCXO 212.5000MHZ LVPECL Si515 212.5 MHz LVPECL 3.3V
515ABB250M000BAGR Skyworks有源晶振 XTAL OSC VCXO 250.0000MHZ LVPECL Si515 250 MHz LVPECL 3.3V
515ACA250M000BAGR Skyworks有源晶振 XTAL OSC VCXO 250.0000MHZ LVPECL Si515 250 MHz LVPECL 3.3V
515BAA000123BAGR Skyworks有源晶振 XTAL OSC VCXO 123.0000KHZ LVDS Si515 123 kHz LVDS 3.3V
515BCA180M000BAGR Skyworks有源晶振 XTAL OSC VCXO 180.0000MHZ LVDS Si515 180 MHz LVDS 3.3V
515FBA180M000BAGR Skyworks有源晶振 XTAL OSC VCXO 180.0000MHZ LVDS Si515 180 MHz LVDS 2.5V
515FCA200M000BAGR Skyworks有源晶振 XTAL OSC VCXO 200.0000MHZ LVDS Si515 200 MHz LVDS 2.5V
515FCA212M500BAGR Skyworks有源晶振 XTAL OSC VCXO 212.5000MHZ LVDS Si515 212.5 MHz LVDS 2.5V
515ACA200M000BAGR Skyworks有源晶振 XTAL OSCILLATOR Si515 200 MHz LVPECL 3.3V
515ACA200M000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 200 MHz LVPECL 3.3V
515ACA204M800CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 204.8 MHz LVPECL 3.3V
515BCA240M000BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 240 MHz LVDS 3.3V
515AAA200M000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 200 MHz LVPECL 3.3V
515AAA161M132BAG Skyworks有源晶振 XTAL OSC VCXO 161.1320MHZ LVPECL Si515 161.132 MHz LVPECL 3.3V
515AAB156M250BAG Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVPECL Si515 156.25 MHz LVPECL 3.3V
515ABB155M520BAG Skyworks有源晶振 XTAL OSC VCXO 155.5200MHZ LVPECL Si515 155.52 MHz LVPECL 3.3V
515ACA000292BAG Skyworks有源晶振 XTAL OSC VCXO 292.0000KHZ LVPECL Si515 292 kHz LVPECL 3.3V
515ACB155M520BAG Skyworks有源晶振 XTAL OSC VCXO 155.5200MHZ LVPECL Si515 155.52 MHz LVPECL 3.3V
515BAA000108BAG Skyworks有源晶振 XTAL OSC VCXO 108.0000KHZ LVDS Si515 108 kHz LVDS 3.3V
515BAA155M520BAG Skyworks有源晶振 XTAL OSC VCXO 155.5200MHZ LVDS Si515 155.52 MHz LVDS 3.3V
515BAA156M250BAG Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVDS Si515 156.25 MHz LVDS 3.3V
