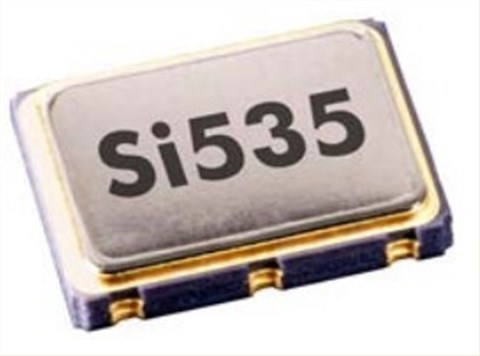

535BB156M250DG,Si535,7050mm,156.25MHz,Silicon差分晶振，美國進口晶振，Silicon品牌晶振，型號：Si535，編碼為：535BB156M250DG，頻率為：156.250MHz，電壓：3.3V，LVDS輸出差分晶振，溫度穩定性：±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：7.0x5.0mm封裝，六腳貼片晶振，有源晶振，石英晶振，差分晶體振蕩器。應用程序：10/40/100G數據中心，10G以太網，交換機/路由器，光纖通道/SAS/存儲，企業服務器，網絡，電信，光模塊，無線網絡等應用。
Si535 XO利用天空解決方案的先進DSPLL®電路提供一個高速差分頻率的超低抖動時鐘。與傳統的XO不同，每個輸出頻率都需要一個不同的晶體，而Si535石英晶振使用一個固定的晶體來提供一個大范圍的輸出頻率。這種基于集成電路的方法允許晶體諧振器提供特殊的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供了優越的電源噪聲抑制，簡化了在通信系統中通常發現的噪聲環境中產生低抖動時鐘的任務。基于Si535 IC的XO在裝運時被工廠編程，從而消除了與自定義振蕩器相關的長時間的前置時間。

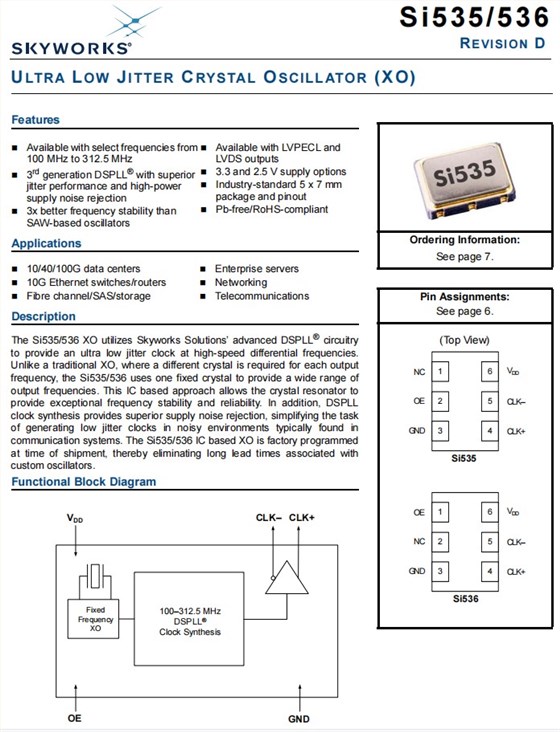

535BB156M250DG,Si535,7050mm,156.25MHz,Silicon差分晶振,產品特點：

535BB156M250DG,Si535,7050mm,156.25MHz,Silicon差分晶振,參數表

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency1

fO

LVPECL/LVDS

156.250

MHz

Initial Accuracy

fi

Measured at +25 °C at time of shipping

—

±1.5

—

ppm

Temperature Stability1,2

–7 –20

— —

+7 +20

ppm

Aging

fa

Frequency drift over first year

±3

ppm

Frequency drift over 20 year life

—

—

±10

ppm

Total Stability2

Temp stability = ±20 ppm

—

—

±31.5

ppm

Temp stability = ±7 ppm

—

—

20

Powerup Time3

tOSC

TA= –40°C — +85°C

10

ms

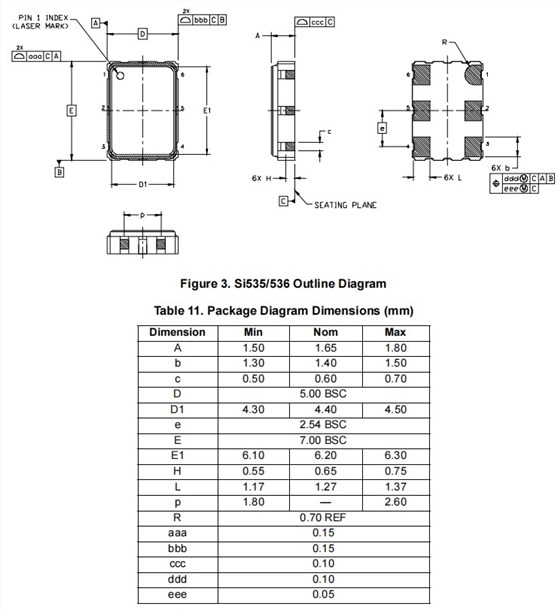

535BB156M250DG,Si535,7050mm,156.25MHz,Silicon差分晶振,尺寸圖

石英晶體振蕩器	品牌	型號	頻率	電壓	頻率穩定度	包裝/封裝
535FB125M000DG	Silicon晶振	Si535	125MHz	2.5V	±20ppm	6-SMD, No Lead
SI50122-A4-GM	Silicon晶振	SI50122-A4	100MHz	2.25 V ~ 3.63 V	+100ppm	10-VFDFN
536BB156M250DG	Silicon晶振	Si536	156.25MHz	3.3V	±20ppm	6-SMD, No Lead
536FB156M250DG	Silicon晶振	Si536	156.25MHz	2.5V	±20ppm	6-SMD, No Lead
536AB156M250DG	Silicon晶振	Si536	156.25MHz	3.3V	±20ppm	6-SMD, No Lead
536EB156M250DG	Silicon晶振	Si536	156.25MHz	2.5V	±20ppm	6-SMD, No Lead
536BB125M000DG	Silicon晶振	Si536	125MHz	3.3V	±20ppm	6-SMD, No Lead
536AB125M000DG	Silicon晶振	Si536	125MHz	3.3V	±20ppm	6-SMD, No Lead
535EB125M000DG	Silicon晶振	Si535	125MHz	2.5V	±20ppm	6-SMD, No Lead
536EB125M000DG	Silicon晶振	Si536	125MHz	2.5V	±20ppm	6-SMD, No Lead
535BB125M000DG	Silicon晶振	Si535	125MHz	3.3V	±20ppm	6-SMD, No Lead
535BB156M250DG	Silicon晶振	Si535	156.25MHz	3.3V	±20ppm	6-SMD, No Lead
535FB156M250DG	Silicon晶振	Si535	156.25MHz	2.5V	±20ppm	6-SMD, No Lead
535AB125M000DG	Silicon晶振	Si535	125MHz	3.3V	±20ppm	6-SMD, No Lead
SI50122-A1-GM	Silicon晶振	SI50122-A1	100MHz	2.25 V ~ 3.63 V	+100ppm	10-VFDFN
SI50122-A2-GM	Silicon晶振	SI50122-A2	100MHz	2.25 V ~ 3.63 V	+100ppm	10-VFDFN
535AB156M250DG	Silicon晶振	Si535	156.25MHz	3.3V	±20ppm	6-SMD, No Lead
536FB125M000DG	貼片晶振	Si536	125MHz	2.5V	±20ppm	6-SMD, No Lead
535EB156M250DG	Silicon晶振	Si535	156.25MHz	2.5V	±20ppm	6-SMD, No Lead
500DLAA125M000ACF	Silicon晶振	Si500D	125MHz	2.5V	±150ppm	6-SMD, No Lead
500DLAA200M000ACF	Silicon晶振	Si500D	200MHz	2.5V	±150ppm	6-SMD, No Lead
590AB70M6560DG	Silicon晶振	Si590	70.656MHz	3.3V	±25ppm	6-SMD, No Lead
590FA200M000DG	Silicon晶振	Si590	200MHz	2.5V	±50ppm	6-SMD, No Lead
590DA156M250DG	Silicon晶振	Si590	156.25MHz	3.3V	±50ppm	6-SMD, No Lead
591BB300M000DG	Silicon晶振	Si591	300MHz	3.3V	±25ppm	6-SMD, No Lead
550CD74M2500DGR	Silicon晶振	Si550	74.25MHz	3.3V	±50ppm	6-SMD, No Lead
514GBB000118AAG	Silicon晶振	Si514	156.25MHz	2.5V	±25ppm	6-SMD, No Lead
550AE100M000DGR	Silicon晶振	Si550	100MHz	3.3V	±20ppm	6-SMD, No Lead
550AE100M000DG	Silicon晶振	Si550	100MHz	3.3V	±20ppm	6-SMD, No Lead
SI50122-A3-GM	Silicon晶振	SI50122-A3	100MHz	2.25 V ~ 3.63 V	+100ppm	10-VFDFN
SI50122-A5-GM	Silicon晶振	SI50122-A5	100MHz	2.25 V ~ 3.63 V	+100ppm	10-VFDFN
SI50122-A6-GM	Silicon晶振	SI50122-A6	100MHz	2.25 V ~ 3.63 V	+100ppm	10-VFDFN
SI50122-A1-GMR	Silicon晶振	SI50122-A1	100MHz	2.25 V ~ 3.63 V	+100ppm	10-VFDFN
SI50122-A2-GMR	Silicon晶振	SI50122-A2	100MHz	2.25 V ~ 3.63 V	+100ppm	10-VFDFN
SI50122-A3-GMR	Silicon晶振	SI50122-A3	100MHz	2.25 V ~ 3.63 V	+100ppm	10-VFDFN
SI50122-A4-GMR	Silicon晶振	SI50122-A4	100MHz	2.25 V ~ 3.63 V	+100ppm	10-VFDFN
SI50122-A5-GMR	Silicon晶振	SI50122-A5	100MHz	2.25 V ~ 3.63 V	+100ppm	10-VFDFN
SI50122-A6-GMR	Silicon晶振	SI50122-A6	100MHz	2.25 V ~ 3.63 V	+100ppm	10-VFDFN
