BMC-20,2016mm,Lihom力宏晶振,SMD石英晶體,藍牙晶振，韓國進口晶振，Lihom晶振，力宏晶振，型號：BMC-20，小體積晶振尺寸：2.0x1.6x0.5mm SMD晶體，頻率范圍：16MHz~60MHz，四腳貼片晶振，石英晶振，SMD石英晶體，無源晶振，石英晶體諧振器，無鉛環保晶振，2016貼片晶振，具有超小型，輕薄型，高精度，高性能，高品質，優異的可靠性特性，如熱和機械沖擊，無鉛，滿足RoHs要求，可進行回流焊接。應用于：數字電子產品、消費電子、車載電子晶振，移動通信，藍牙，無線局域網，汽車電子設備，小型便捷式設備，智能手機，平板電腦，數碼電子等應用。

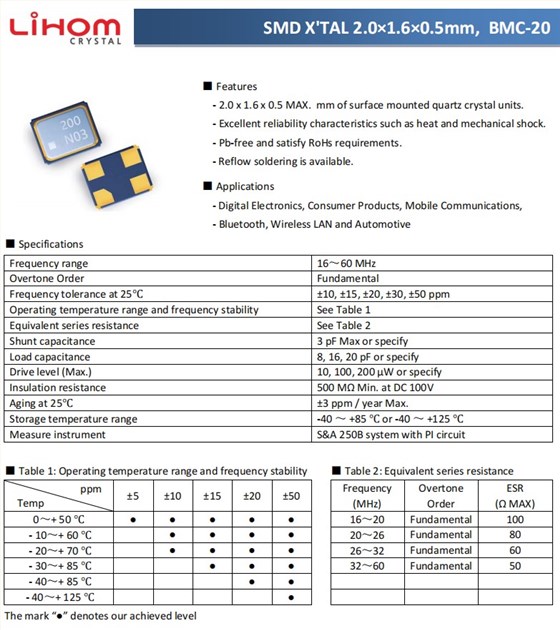

BMC-20,2016mm,Lihom力宏晶振,SMD石英晶體,藍牙晶振,參數表
| Frequency range | 16～60 MHz | |||||||||||||||||||
| Overtone Order | Fundamental | |||||||||||||||||||
| Frequency tolerance at 25℃ | ±10, ±15, ±20, ±30, ±50 ppm | |||||||||||||||||||
| Operating temperature range and frequency stability | See Table 1 | |||||||||||||||||||
| Equivalent series resistance | See Table 2 | |||||||||||||||||||
| Shunt capacitance | 3 pF Max or specify | |||||||||||||||||||
| Load capacitance | 8, 16, 20 pF or specify | |||||||||||||||||||
| Drive level (Max.) | 10, 100, 200 μW or specify | |||||||||||||||||||
| Insulation resistance | 500 MΩ Min. at DC 100V | |||||||||||||||||||
| Aging at 25℃ | ±3 ppm / year Max. | |||||||||||||||||||
| Storage temperature range | -40～+85℃or -40～+125℃ | |||||||||||||||||||
| Measure instrument | S&A 250B system with PI circuit |
|||||||||||||||||||

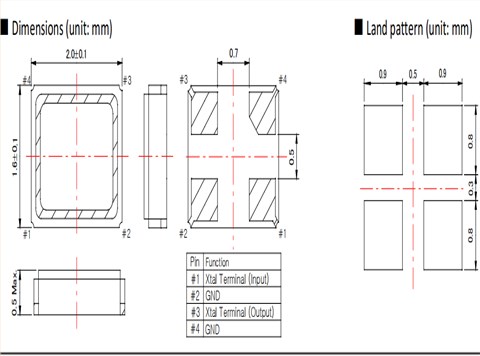

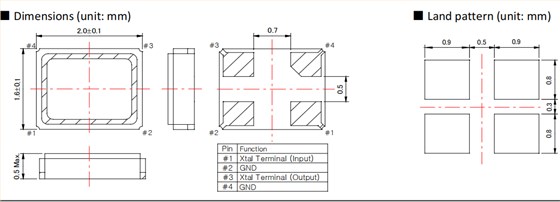

BMC-20,2016mm,Lihom力宏晶振,SMD石英晶體,藍牙晶振,尺寸圖

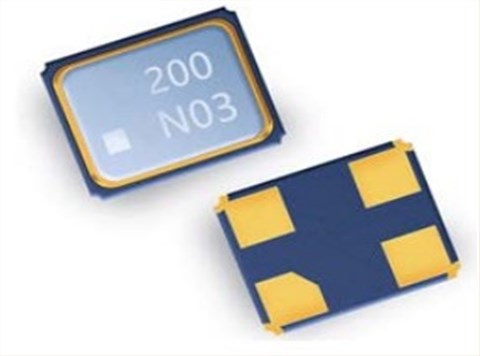

BMC-20,2016mm,Lihom力宏晶振,SMD石英晶體,藍牙晶振
產品特點：
尺寸：2.0 x 1.6 x 0.5(最大)mm的表面安裝石英晶體單元
優異的可靠性特性，如熱和機械沖擊
不含鉛且滿足RoHs要求
可進行回流焊接
應用程序：數字電子、消費品、移動通信、藍牙、無線局域網和汽車
