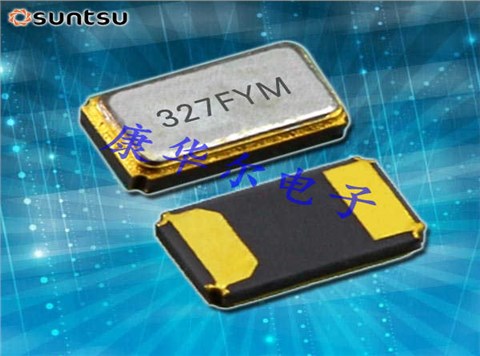

SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312

SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312

產品簡介

SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312，尺寸3.2x1.5mm，頻率32.768KHZ，松圖32.768K晶振，3215mm音叉晶體，兩腳無源晶振，歐美進口晶振，32.768K時鐘晶振，無源晶振，SMD石英晶體，輕薄型晶振，小體積晶振，低損耗晶振，低功耗晶振，低耗能晶振，高性能晶振，高品質晶振，智能手表晶振，數字電表晶振，無線應用晶振，測試測量晶振，智能手環晶振，電話機晶振，具有高品質高性能的特點。

產品超級適合用于智能手表，時計產品晶振，數字電表，無線應用，測試測量，智能手環，電話機等應用。SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312.

產品詳情

1

SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312，尺寸3.2x1.5mm，頻率32.768KHZ，松圖32.768K晶振，3215mm音叉晶體，兩腳無源晶振，歐美進口晶振，32.768K時鐘晶振，無源晶振，SMD石英晶體，輕薄型晶振，小體積晶振，低損耗晶振，低功耗晶振，低耗能晶振，高性能晶振，高品質晶振，智能手表晶振，數字電表晶振，無線應用晶振，測試測量晶振，智能手環晶振，電話機晶振，具有高品質高性能的特點。

產品超級適合用于智能手表，時計產品晶振，數字電表，無線應用，測試測量，智能手環，電話機等應用。SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312.2

SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312 參數表

Electrical ParametersUnitsMinimumTypicalMaximumRemarks
Frequency Range kHz 32.768
Frequency Tolerance at +25ºC ppm -20 +20 See part numbering guide for options.
Frequency Stability vs. Aging ppm -3 +3 First year @ +25ºC.
Frequency Coefficient (?) ppm/T2 -0.040 -0.030 -0.020
Operating Temperature °C -40 +85 See part numbering guide for options.
Turnover Temperature °C +20 +25 +30
Storage Temperature °C -55 +125
Load Capacitance pF 6 12.5 See part numbering guide for options.
Shunt Capacitance pF 1.4
Drive Level µW 1
Insulation Resistance M? 500 @ 100VDC ± 15V.
Equivalent Series Resistance k? 70
3

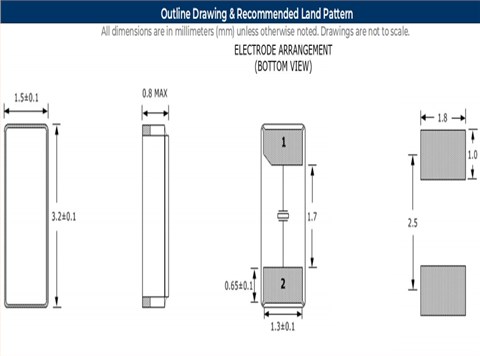

SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312尺寸圖

SWS312

SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312

貼片晶振產品特點：

±20ppm（公差）可用

超小型封裝

磁帶和卷軸

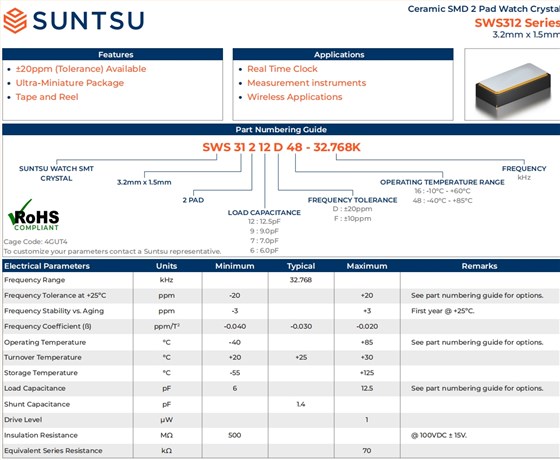

SWS312 1SWS312

SUNTSU Crystal編碼 Package Size Load Cap. Freq. Tolerance Operating Temp. Frequency
SWS11212D16-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS11212D48-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS1127D48-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 7pF ±20ppm -40℃ - +85℃ 32.768K
SWS1129D16-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -10℃ - +60℃ 32.768K
SWS1129D48-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -40℃ - +85℃ 32.768K
SWS14412D48A-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS14412D48B-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS1446D48A-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 6pF ±20ppm -40℃ - +85℃ 32.768K
SWS1446D48B-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 6pF ±20ppm -40℃ - +85℃ 32.768K
SWS1449D48A-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 9pF ±20ppm -40℃ - +85℃ 32.768K
SWS21212D48-32.768K 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS2129F48-32.768K 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±10ppm -40℃ - +85℃ 32.768K
SWS31212D16-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS31212D48-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS3126D16-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 6pF ±20ppm -10℃ - +60℃ 32.768K
SWS3126D48-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 6pF ±20ppm -40℃ - +85℃ 32.768K
SWS3127D16-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 7pF ±20ppm -10℃ - +60℃ 32.768K
SWS3127D48-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 7pF ±20ppm -40℃ - +85℃ 32.768K
SWS3129D16-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -10℃ - +60℃ 32.768K
SWS3129D48-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -40℃ - +85℃ 32.768K
SWS41212D16-32.768K 4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS41212D48-32.768K 4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS51212D16-32.768K 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS5127D16-32.768K 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal 7pF ±20ppm -10℃ - +60℃ 32.768K
SWS5129D16-32.768K 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -10℃ - +60℃ 32.768K
SWS61412D48-32.768K 6.9X1.4 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS83412D16-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS83412D48-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS8346D16-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 6pF ±20ppm -10℃ - +60℃ 32.768K
SWS8346D48-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 6pF ±20ppm -40℃ - +85℃ 32.768K
SWS8347D16-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 7pF ±20ppm -10℃ - +60℃ 32.768K
SWS8347D48-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 7pF ±20ppm -40℃ - +85℃ 32.768K
SWS8349D16-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 9pF ±20ppm -10℃ - +60℃ 32.768K
SWS8349D48-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 9pF ±20ppm -40℃ - +85℃ 32.768K
