CMOS,FCD-Tech移動設備晶振,SX5CB-15F00E-32MHz,5032mm,32MHZ振蕩器,FCD-Tech水晶振蕩子,四腳有源晶振,OSC貼片晶振,5032mm有源晶振,石英有源振蕩器,32MHZ石英晶體振蕩器,時鐘晶體振蕩器,尺寸5.0x3.2mm,頻率32MHZ,輸出CMOS,低電壓晶振,低損耗晶振,低抖動晶振,無線局域網晶振,移動設備晶振,便攜式設備晶振,數字音頻晶振.
CMOS,FCD-Tech移動設備晶振,SX5CB-15F00E-32MHz,5032mm,32MHZ振蕩器特點:
標準微型包裝
低電壓,低電流有源晶振
應用：藍牙，便攜式電子設備，無線局域網.

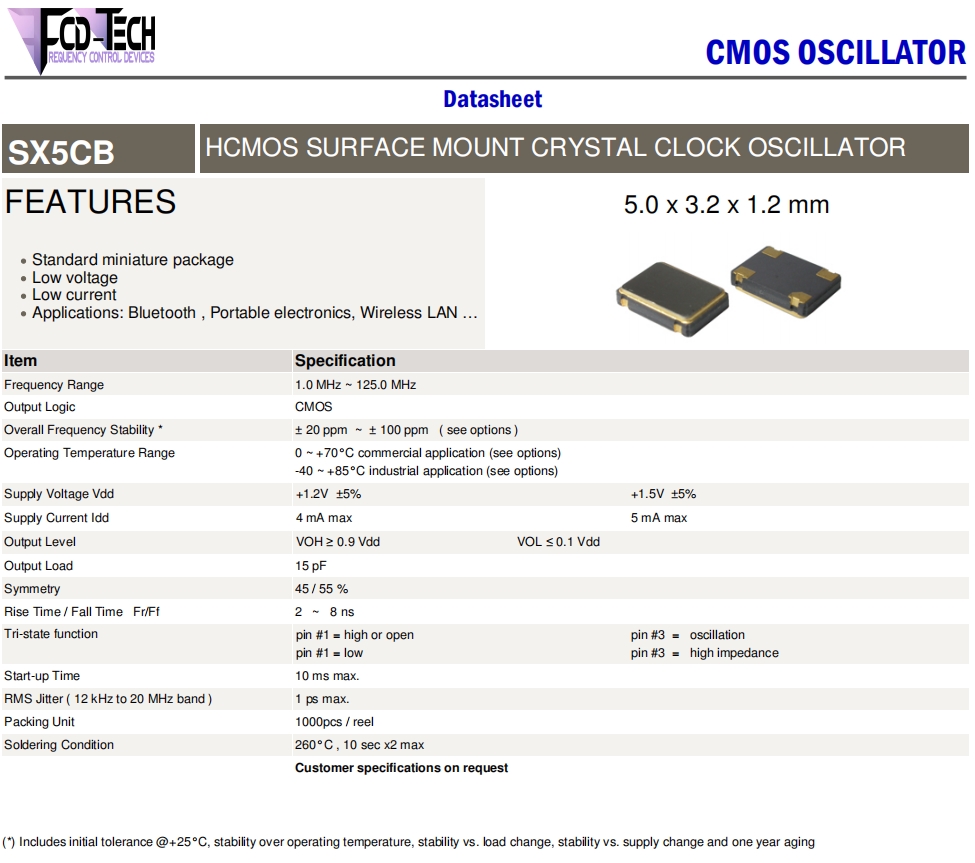

CMOS,FCD-Tech移動設備晶振,SX5CB-15F00E-32MHz,5032mm,32MHZ振蕩器 參數表
| Item | Specification | ||||||||
| Frequency Range | 32.0 MHz | ||||||||
| Output Logic | CMOS | ||||||||

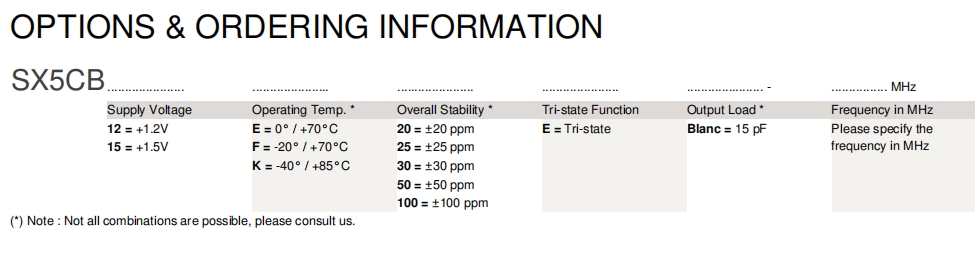

| Overall Frequency Stability * | ± 20 ppm~± 100 ppm( see options ) | ||||||||
| Operating Temperature Range | 0 ~ +70°C commercial application (see options) | ||||||||
| -40 ~ +85°C industrial application (see options) | |||||||||
| Supply Voltage Vdd | +1.2V±5% | +1.5V±5% | |||||||
| Supply Current Idd | 4 mA max | 5 mA max | |||||||
| Output Level | VOH ≥ | 0.9 Vdd | VOL ≤ 0.1 Vdd | ||||||
| Output Load | 15 pF | ||||||||
| Symmetry | 45 / 55 % | ||||||||
| Rise Time / Fall TimeFr/Ff | 2~8 ns | ||||||||
| Tri-state function | pin #1 = high or | open | pin #3=oscillation | ||||||
| pin #1 = low | pin #3=high impedance | ||||||||
| Start-up Time | 10 ms max. | ||||||||
 band )1 ps max.
|
|||||||||
| Packing Unit | 1000pcs / reel | ||||||||
| Soldering Condition | 260°C , 10 sec x2 max | ||||||||

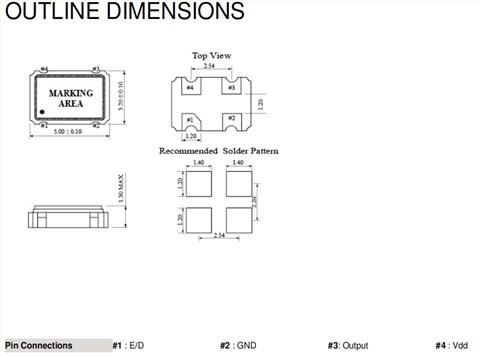

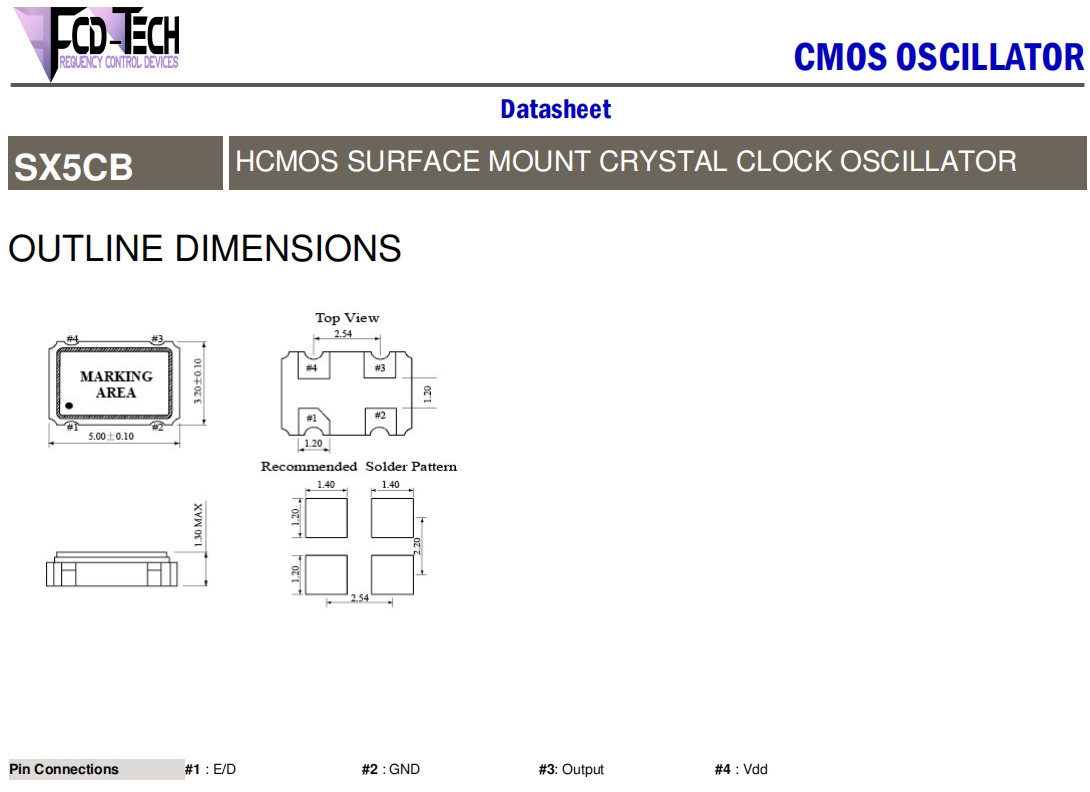

CMOS,FCD-Tech移動設備晶振,SX5CB-15F00E-32MHz,5032mm,32MHZ振蕩器尺寸圖
