產品簡介

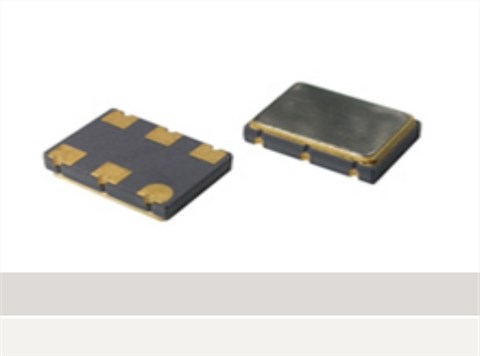

SX3HK,SX3HK25K50E-52MHz,HCSL,荷蘭FCD-Tech差分晶振,3225mm,有源晶體振蕩器,荷蘭進口晶振,六腳差分晶振,3225mm晶振,SX3HK振蕩器,HCSL輸出晶振,差分貼片晶振,石英差分晶振,尺寸3.2x2.5mm,頻率52MHZ,輸出HCSL,耐高溫晶振,低相位晶振,低相噪晶振,低電流晶振,多媒體設備晶振,儀器設備晶振,測試設備晶振,數字視頻晶振.

產品詳情

SX3HK,SX3HK25K50E-52MHz,HCSL,荷蘭FCD-Tech差分晶振,3225mm特點:

微型封裝有源晶振

卓越的相位噪聲

極低的電流消耗

應用：SONET，xDSL，SDH，媒體盒.

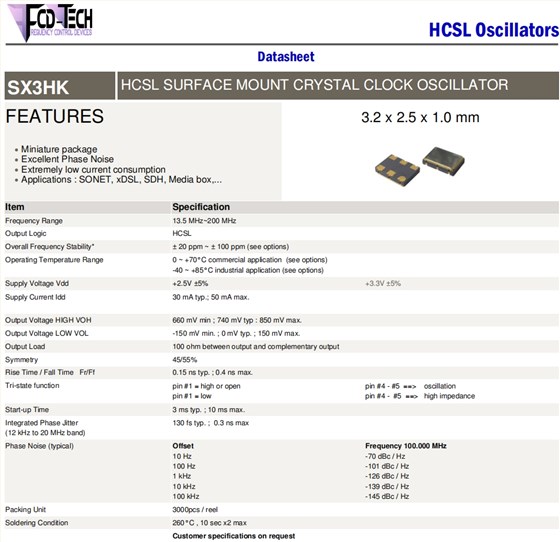

SX3HK,SX3HK25K50E-52MHz,HCSL,荷蘭FCD-Tech差分晶振,3225mm 參數表

Item Frequency Range	Specification 52 MHz

Output Logic	HCSL
Overall Frequency Stability*	± 20 ppm ~ ± 100 ppm (see options)
Operating Temperature Range	0 ~ +70°C commercial application(see options) -40 ~ +85°C industrial application (see options)
Supply Voltage Vdd	+2.5V ±5%+3.3V ±5%
Supply Current Idd	30 mA typ.; 50 mA max.
Output Voltage HIGH VOH	660 mV min ; 740 mV typ : 850 mV max.
Output Voltage LOW VOL	-150 mV min. ; 0 mV typ. ; 150 mV max.
Output Load	100 ohm between output and complementary output
Symmetry	45/55%
Rise Time / Fall TimeFr/Ff	0.15 ns typ. ; 0.4 ns max.
Tri-state function	pin #1 = high or open pin #1 = low	pin #4 - #5==>oscillation pin #4 -#5==>high impedance
Start-up Time	3 ms typ. ; 10 ms max.
Integrated Phase Jitter (12 kHz to 20 MHz band)	130 fs typ. ;0.3 ns max
Phase Noise (typical)	Offset 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz	Frequency 100.000 MHz -70 dBc / Hz -101 dBc / Hz -126 dBc / Hz -139 dBc / Hz -145 dBc / Hz
Packing Unit	3000pcs / reel
Soldering Condition	260°C , 10 sec x2 max
