SX5C-33F20EH-100MHZ,5032mm,CMOS,FCD-Tech微波雷達晶振,SX5C系列,荷蘭進口晶振,進口有源晶振,SX5C系列有源晶體振蕩器,100MHZ石英振蕩器,CMOS輸出晶振,5032小尺寸晶振,尺寸5.0x3.2mm,頻率100MHZ,電壓3.3V,輸出CMOS,低電壓晶振,低抖動晶振,低功耗晶振,低相位晶振,無線通信晶振,便攜式電子晶振,微波雷達晶振.
SX5C-33F20EH-100MHZ,5032mm,CMOS,FCD-Tech微波雷達晶振,SX5C系列特點:
標準微型包裝OSC晶振
高沖擊和振動電阻率
許多選項可用
應(yīng)用：無線通信、便攜式電子產(chǎn)品.

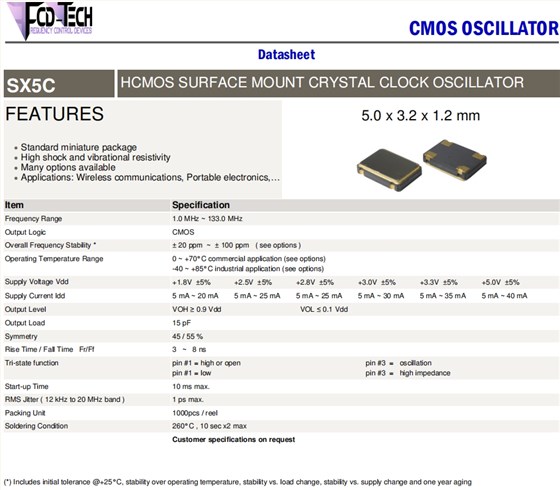

SX5C-33F20EH-100MHZ,5032mm,CMOS,FCD-Tech微波雷達晶振,SX5C系列 參數(shù)表
| Item | Specification | ||||||||||||
| Frequency Range | 100.0 MHz | ||||||||||||
| Output Logic | CMOS | ||||||||||||
| Overall Frequency Stability * | ± 20 ppm~± 100 ppm( see options ) | ||||||||||||
| Operating Temperature Range | 0 ~ +70°C commercial application (see options) | ||||||||||||
| -40 ~ +85°C industrial application (see options) | |||||||||||||
| Supply Voltage Vdd+1.8V ±5%+2.5V ±5%+2.8V ±5% | +3.0V±5% | +3.3V±5% | +5.0V±5% | ||||||||||
| Supply Current Idd5 mA ~ 20 mA5 mA ~ 25 mA5 mA ~ 25 mA | 5 mA ~ 30 mA | 5 mA ~ 35 mA | 5 mA ~ 40 mA | ||||||||||
| Output Level | 0.9 Vdd | VOL ≤ 0.1 Vdd | |||||||||||
| Output Load15 pF | |||||||||||||
| Symmetry45 / 55 % | |||||||||||||
| Rise Time / Fall TimeFr/Ff3 ~ 8 ns | |||||||||||||
|
Tri-state functionpin #1 = high or open pin #1 = low |
pin #3=oscillation pin #3=high impedance |
||||||||||||
| Start-up Time | 10 ms max. | ||||||||||||
| RMS Jitter ( 12 kHz to 20 MHz band )1 ps max. | |||||||||||||
| Packing Unit | 1000pcs / reel | ||||||||||||
| Soldering Condition | 260°C , 10 sec x2 max | ||||||||||||

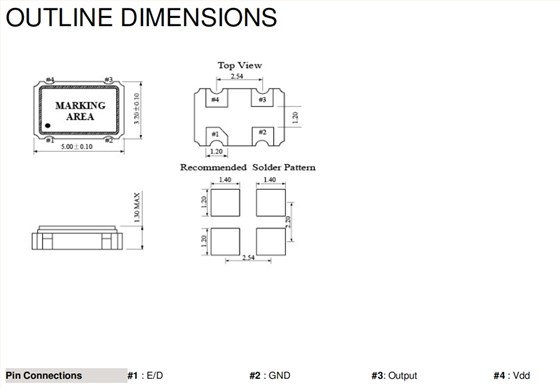

SX5C-33F20EH-100MHZ,5032mm,CMOS,FCD-Tech微波雷達晶振,SX5C系列尺寸圖
