日本精工愛普生接受了中國蘇州政府2007 年的招商引資,命名為【愛普生拓優科夢水晶元器件（蘇州）有限公司】 愛普生拓優科夢（Epson Toyocom）是精工愛普生株式會社與愛普生（中國）有限公司共同投資成立的有限責任公司（外商合資）.目前注冊資本2500萬美金.現員工人數:1500人.主要從事2520晶振系列產品的生產,投資初期主要生產32.768KHZ系列產品,從2009年起32.768K系列產品轉向馬來西亞量產.蘇州愛普生工廠就以生產高端的石英晶體振蕩器為主,普通石英晶體諧振器為輔.

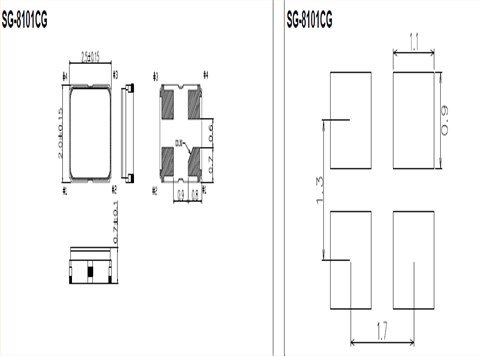

愛普生晶振,有源晶振,SG-8101CG晶振,X1G0051810011晶振,2520mm體積的晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接（產品無鉛對應）,為無鉛產品.
石英晶振在選用晶片時應注意溫度范圍、貼片晶振溫度范圍內的頻差要求，貼片晶振溫度范圍寬時(-40℃-85℃)晶振切割角度比窄溫(-10℃-70℃)切割角度應略高。對于晶振的條片，長邊為 X 軸，短邊為 Z 軸，面為 Y 軸。對于圓片晶振，X、Z 軸較難區分，所以石英晶振對精度要求高的產品（如部分定單的 UM-1），會在 X 軸方向進行拉弦（切掉一小部分），以利于晶振的晶片有方向的裝架點膠，點膠點點在 Z 軸上。保證晶振產品的溫度特性。
|
項目 |
符號 |
規格說明 |
條件 |
|
輸出頻率范圍 |
f0 |
0.67~170MHZ |
請聯系我們以便獲取其它可用頻率的相關信息 |
|
電源電壓 |
VCC |
1.8~3.3V |
請聯系我們以了解更多相關信息 |
|
儲存溫度 |
T_stg |
-55℃to +125℃ |
裸存 |
|
工作溫度 |
T_use |
G: -40℃to +85℃ |
請聯系我們查看更多資料http://m.bainawang.com.cn |
|
H: -40℃to +105℃ |
|||
|
J: -40℃to +125℃ |
|||
|
頻率穩定度 |
f_tol |
J: ±50 × 10-6 |
|
|
L: ±100 × 10-6 |
|||
|
T: ±150 × 10-6 |
|||
|
功耗 |
ICC |
3.5 mA Max. |
無負載條件、最大工作頻率 |
|
待機電流 |
I_std |
3.3μA Max. |
ST=GND |
|
占空比 |
SYM |
45 % to 55 % |
50 % VCC極, L_CMOS≦15 pF |
|
輸出電壓 |
VOH |
VCC-0.4V Min. |
|
|
VOL |
0.4 V Max. |
|
|
|
輸出負載條件 |
L_CMOS |
15 pF Max. |
|
|
輸入電壓 |
VIH |
80% VCCMax. |
ST終端 |
|
VIL |
20 % VCCMax. |
||
|
上升/下降時間 |
tr / tf |
4 ns Max. |
20 % VCCto 80 % VCC極, L_CMOS=15 pF |
|
振蕩啟動時間 |
t_str |
3 ms Max. |
t=0 at 90 % |
|
頻率老化 |
f_aging |
±3 × 10-6/ year Max. |
+25℃,初年度,第一年 |
愛普生有源進口日產晶振型號列表:
愛普生有源進口日產晶振編碼列表:
Model
Frequency
LxWxH
Output Wave
Ope Temperature
Freq. Tol.
I [Max]
25°C Aging
Aging2
Symmetry
SG-8101CG
48.000000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
-40 to 105 °C
+/-20 ppm
≤ 4.4 mA
Included in Frequency tolerance First year
45 to 55 %
SG-8101CG
66.666660 MHz
2.50 x 2.00 x 0.80 mm
CMOS
-40 to 105 °C
+/-20 ppm
≤ 5.2 mA
Included in Frequency tolerance First year
45 to 55 %
SG-8101CG
24.000000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
-40 to 105 °C
+/-20 ppm
≤ 4.4 mA
Included in Frequency tolerance First year
45 to 55 %
SG-8101CG
100.000000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
-40 to 105 °C
+/-20 ppm
≤ 5.9 mA
Included in Frequency tolerance First year
45 to 55 %
SG-8101CG
16.000000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
-40 to 105 °C
+/-20 ppm
≤ 3.5 mA
Included in Frequency tolerance First year
45 to 55 %
SG-8101CG
25.000000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
-40 to 105 °C
+/-20 ppm
≤ 4.4 mA
Included in Frequency tolerance First year
45 to 55 %
SG-8101CG
25.000000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
-40 to 105 °C
+/-20 ppm
≤ 4.4 mA
Included in Frequency tolerance First year
45 to 55 %
SG-8101CG
1.000000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
-40 to 105 °C
+/-20 ppm
≤ 3.5 mA
Included in Frequency tolerance First year
45 to 55 %
SG-8101CG
80.000000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
-40 to 105 °C
+/-20 ppm
≤ 5.9 mA
Included in Frequency tolerance First year
45 to 55 %
X1G0051810011
SG-8101CG
48.000000 MHz
2.50 x 2.00 x
0.80 mm
CMOS
-40 to 105 °C
+/-20 ppm
≤ 4.4 mA
Included in
Frequency tolerance First year
45 to 55 %
X1G0051810013
SG-8101CG
66.666660
MHz
2.50
x 2.00 x 0.80 mm
CMOS
-40
to 105 °C
+/-20
ppm
≤
5.2 mA
Included
in Frequency tolerance First year
45
to 55 %
X1G0051810014
SG-8101CG
24.000000
MHz
2.50
x 2.00 x 0.80 mm
CMOS
-40
to 105 °C
+/-20
ppm
≤
4.4 mA
Included
in Frequency tolerance First year
45
to 55 %
X1G0051810015
SG-8101CG
100.000000
MHz
2.50
x 2.00 x 0.80 mm
CMOS
-40
to 105 °C
+/-20
ppm
≤
5.9 mA
Included
in Frequency tolerance First year
45
to 55 %
X1G0051810016
SG-8101CG
16.000000
MHz
2.50
x 2.00 x 0.80 mm
CMOS
-40
to 105 °C
+/-20
ppm
≤
3.5 mA
Included
in Frequency tolerance First year
45
to 55 %
X1G0051810017
SG-8101CG
25.000000
MHz
2.50
x 2.00 x 0.80 mm
CMOS
-40
to 105 °C
+/-20
ppm
≤
4.4 mA
Included
in Frequency tolerance First year
45
to 55 %
X1G0051810018
SG-8101CG
25.000000
MHz
2.50
x 2.00 x 0.80 mm
CMOS
-40
to 105 °C
+/-20
ppm
≤
4.4 mA
Included
in Frequency tolerance First year
45
to 55 %
X1G0051810019
SG-8101CG
1.000000
MHz
2.50
x 2.00 x 0.80 mm
CMOS
-40
to 105 °C
+/-20
ppm
≤
3.5 mA
Included
in Frequency tolerance First year
45
to 55 %
X1G0051810020
SG-8101CG
80.000000
MHz
2.50
x 2.00 x 0.80 mm
CMOS
-40
to 105 °C
+/-20
ppm
≤
5.9 mA
Included
in Frequency tolerance First year
45
to 55 %
自動安裝和真空化引發的沖擊會破壞產品特性并影響這些日本2520有源振蕩器產品。請?jiān)O(shè)置安裝條件以盡可能將沖擊降至最低,并確保在安裝前未對晶振特性產生影響。條件改變時,請重新檢查安裝條件。同時,在安裝前后,請確保產品未撞擊機器或其他電路板等。愛普生晶振,有源晶振,SG-8101CG晶振,X1G0051810011晶振
存儲事項:(1) 在更高或更低溫度或高濕度環境下長時間保存時,會影響計算機晶體振蕩器頻率穩定性或焊接性。請?jiān)谡囟群蜐穸拳h(huán)境下保存這些石英晶振產品,并在開封后盡可能進行安裝,以免長期儲藏。 正常溫度和濕度： 溫度：+15°C 至 +35°C,濕度 25 % RH 至 85 % RH。 (2) 請仔細處理內外盒與卷帶。外部壓力會導致卷帶受到損壞。
耐焊性：將晶振加熱包裝材料至+150°C以上會破壞產品特性或損害產品。如需在+150°C以上焊接,建議使用SMD晶振產品。在下列回流條件下,對石英晶振產品甚至2520mm晶體振蕩器使用更高溫度,會破壞晶振特性。建議使用下列配置情況的回流條件。安裝這些貼片晶振之前,應檢查焊接溫度和時間。同時,在安裝條件更改的情況下,請?jiān)俅芜M(jìn)行檢查。如果需要焊接的晶振產品在下列配置條件下進行焊接,請聯系我們以獲取耐熱的相關信息。
