全球首家上百萬進口晶振代理商

深圳市康華爾電子有限公司

國際進口晶振品牌首選康華爾

首頁 renesas瑞薩晶振

XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器

XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器

產品簡介

XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器，尺寸3.2x2.5mm，頻率200MHZ，電壓2.5V，輸出邏輯LVDS，LVDS輸出晶振，六腳差分晶振，差分晶體振蕩器，3225mm差分晶振，SMD差分晶振，OSC差分晶振，有源差分晶體振蕩器，低耗能差分晶振，低抖動差分晶振，低相噪差分晶振，低電壓壓控晶振，低相位差分晶振，低功耗差分晶振，低耗能差分晶振，高質量差分壓晶振，具有低相位低相噪的特點。

XP設備是基于超低相位噪聲石英的PLL支持大范圍頻率和輸出的有源晶體振蕩器接口類型。這些設備設計為在三不同的電源，有三種封裝尺寸具有幾種引腳輸出配置，以及三種可操作溫度范圍。XP設備可以編程以生成輸出頻率從15MHz到2100MHz，分辨率低至1Hz精度。XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器.


產品詳情

1

XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器，尺寸3.2x2.5mm，頻率200MHZ，電壓2.5V，輸出邏輯LVDS，LVDS輸出晶振，六腳差分晶振，差分晶體振蕩器，3225mm差分晶振，SMD差分晶振，OSC差分晶振，有源差分晶體振蕩器，低耗能差分晶振，低抖動差分晶振，低相噪差分晶振，低電壓壓控晶振，低相位差分晶振，低功耗差分晶振，低耗能差分晶振，高質量差分壓晶振，具有低相位低相噪的特點。

XP設備是基于超低相位噪聲石英的PLL支持大范圍頻率和輸出的有源晶體振蕩器接口類型。這些設備設計為在三不同的電源，有三種封裝尺寸具有幾種引腳輸出配置，以及三種可操作溫度范圍。XP設備可以編程以生成輸出頻率從15MHz到2100MHz，分辨率低至1Hz精度。XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器.

2

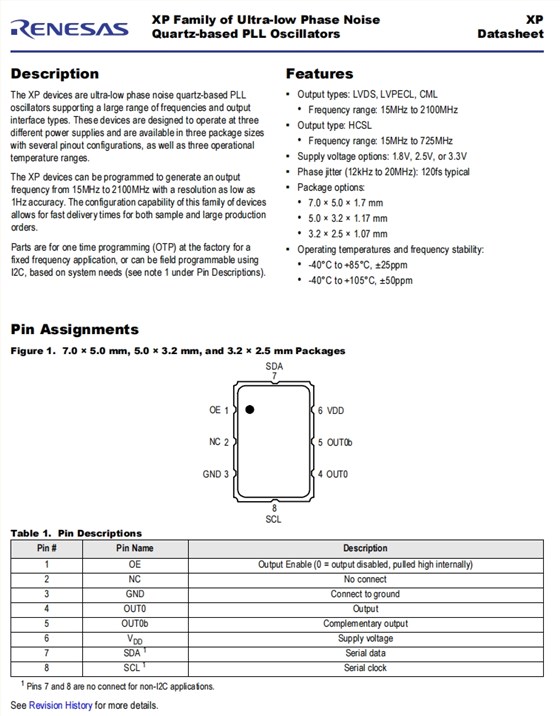

XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器參數表

XP cans

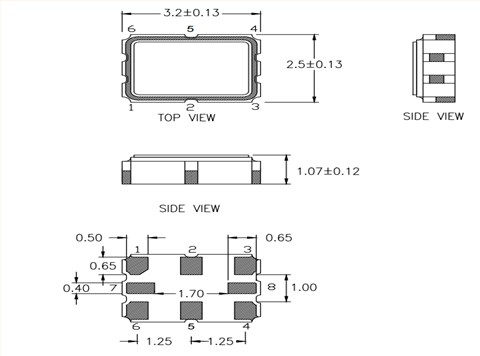

3XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器 尺寸圖

XP 3225

產品特性：

輸出類型：差分晶振LVDS、LVPECL、CML

頻率范圍：15MHz至2100MHz

輸出類型：HCSL

頻率范圍：15MHz至725MHz

電源電壓選項：1.8V、2.5V或3.3V

相位抖動（12kHz至20MHz）：典型值為120fs

程序包選項：

7.0×5.0×1.7毫米

5.0×3.2×1.17毫米

3.2×2.5×1.07毫米

工作溫度和頻率穩定性：

-40°C至+85°C，±25ppm

-40°C至+105°C，±50ppm

XP 1

更多相關Renesas晶振型號

Mfr Part # Mfr Description Series Frequency Output Voltage - Supply Frequency Stability
XPP336100.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 100 MHz LVPECL 3.3V ±25ppm
XPL536800.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 800 MHz LVDS 3.3V ±25ppm
XPP736161.132812I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 161.132812 MHz LVPECL 3.3V ±25ppm
XPL526200.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 200 MHz LVDS貼片差分晶振 2.5V ±25ppm
XPP736125.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 125 MHz LVPECL 3.3V ±25ppm
XPC736174.703000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 174.703 MHz CML 3.3V ±25ppm
XPL316133.333333I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 133.333333 MHz LVDS 1.8V ±25ppm
XPC316800.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 800 MHz CML 1.8V ±25ppm
XPC336212.500000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 212.5 MHz CML 3.3V ±25ppm
XPL336016.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 16 MHz LVDS 3.3V ±25ppm
XPP316156.250000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 156.25 MHz LVPECL 1.8V ±25ppm
XPL536C10.937500I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 1.2109375 GHz LVDS 3.3V ±25ppm
XPP736212.500000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 212.5 MHz LVPECL 3.3V ±25ppm
XPL736156.250000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 156.25 MHz LVDS 3.3V ±25ppm
XPL536148.500000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 148.5 MHz LVDS 3.3V ±25ppm
XPP736156.253906I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 156.253906 MHz LVPECL 3.3V ±25ppm
XPC536020.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 20 MHz CML 3.3V ±25ppm
XPC736174.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 174 MHz CML 3.3V ±25ppm
XPP736175.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 175 MHz LVPECL 3.3V ±25ppm
XPL736148.500000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 148.5 MHz LVDS 3.3V ±25ppm
XPL336148.500000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 148.5 MHz LVDS 3.3V ±25ppm
XPL336156.250000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 156.25 MHz LVDS 3.3V ±25ppm
XPL336125.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 125 MHz LVDS 3.3V ±25ppm
XPL316050.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 50 MHz LVDS 1.8V ±25ppm
XPP736100.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 100 MHz LVPECL 3.3V ±25ppm
XPC736625.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 625 MHz CML 3.3V ±25ppm
XPP736106.250000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 106.25 MHz LVPECL 3.3V ±25ppm
XPL316032.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 32 MHz LVDS 1.8V ±25ppm
XPL516156.250000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 156.25 MHz LVDS 1.8V ±25ppm
XPP735156.250005I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 156.250005 MHz LVPECL 3.3V ±50ppm
XPP736122.880000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 122.88 MHz LVPECL 3.3V ±25ppm
XPN336078.125000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 78.125 MHz HCSL 3.3V ±25ppm
XPP736124.992000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 124.992 MHz LVPECL 3.3V ±25ppm
XPL336100.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 100 MHz LVDS 3.3V ±25ppm
XPL736125.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 125 MHz LVDS 3.3V ±25ppm
XPC316156.250000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 156.25 MHz CML 1.8V ±25ppm
XPL536148.163548I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 148.163548 MHz LVDS 3.3V ±25ppm
XPL736300.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 300 MHz LVDS 3.3V ±25ppm
XPL316156.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 156 MHz LVDS 1.8V ±25ppm
XPL326200.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 200 MHz LVDS 2.5V ±25ppm
XPP736200.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 200 MHz LVPECL 3.3V ±25ppm
XPL526312.500000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 312.5 MHz LVDS 2.5V ±25ppm
XPL336040.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 40 MHz LVDS 3.3V ±25ppm
XPP526156.250000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 156.25 MHz LVPECL 2.5V ±25ppm
XPN326312.500000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 312.5 MHz HCSL 2.5V ±25ppm
XPC736100.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 100 MHz CML 3.3V ±25ppm
XPN336025.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 25 MHz HCSL 3.3V ±25ppm
XPM736625.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 625 MHz - 3.3V ±25ppm
XPN336100.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 100 MHz HCSL 3.3V ±25ppm
XPL736800.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 800 MHz LVDS 3.3V ±25ppm
XPP726212.500000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 212.5 MHz LVPECL 2.5V ±25ppm
XPL536070.656000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 70.656 MHz LVDS 3.3V ±25ppm
XPP736250.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 250 MHz LVPECL 3.3V ±25ppm
XPP726312.510900I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 312.5109 MHz LVPECL 2.5V ±25ppm
XPP736915.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 915 MHz LVPECL 3.3V ±25ppm
XPP336830.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 830 MHz LVPECL 3.3V ±25ppm
XPN336156.250000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 156.25 MHz HCSL 3.3V ±25ppm
XPN316161.132812I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 161.132812 MHz HCSL 1.8V ±25ppm
XPP336156.253906I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 156.253906 MHz LVPECL 3.3V ±25ppm
XPL316033.333333I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 33.333333 MHz LVDS 1.8V ±25ppm
XPN536156.250000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 156.25 MHz HCSL 3.3V ±25ppm
XPP336250.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 250 MHz LVPECL 3.3V ±25ppm
XPN316100.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 100 MHz HCSL 1.8V ±25ppm
XPL316080.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 80 MHz LVDS 1.8V ±25ppm
XPL336200.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 200 MHz LVDS 3.3V ±25ppm
XPL336644.531250I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 644.53125 MHz LVDS 3.3V ±25ppm
XPL326156.250000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 156.25 MHz LVDS 2.5V ±25ppm
XPP736161.132580I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 161.13258 MHz LVPECL 3.3V ±25ppm
XPP726445.500000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 445.5 MHz LVPECL 2.5V ±25ppm
XPL326500.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 500 MHz LVDS 2.5V ±25ppm
XPL336830.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 830 MHz LVDS 3.3V ±25ppm
XPP726160.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 160 MHz LVPECL 2.5V ±25ppm
XPL516625.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 625 MHz LVDS 1.8V ±25ppm
XPL316322.265625I renesas瑞薩晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 322.265625 MHz LVDS 1.8V ±25ppm
XPP336312.500000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 312.5 MHz LVPECL 3.3V ±25ppm
XPC336156.250000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 156.25 MHz CML 3.3V ±25ppm
XPN716156.253906I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 156.253906 MHz HCSL 1.8V ±25ppm
XPL526156.250000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 156.25 MHz LVDS 2.5V ±25ppm
XPP516625.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XP 625 MHz LVPECL 1.8V ±25ppm
XPL726B00.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XP 1.1 GHz LVDS 2.5V ±25ppm
XPL336049.152000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 49.152 MHz LVDS 3.3V ±25ppm
XPP336050.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 50 MHz LVPECL 3.3V ±25ppm
XPL316026.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XP 26 MHz LVDS 1.8V ±25ppm
