全球首家上百萬進口晶振代理商

深圳市康華爾電子有限公司

國際進口晶振品牌首選康華爾

首頁 renesas瑞薩晶振

XUL735200.000000I,Renesas Electronics,瑞薩差分晶振

XUL735200.000000I,Renesas Electronics,瑞薩差分晶振

產品簡介

XUL735200.000000I,Renesas Electronics,瑞薩差分晶振，XU器件是低相位噪聲石英基鎖相環有源晶體振蕩器，支持大范圍的頻率和輸出接口類型。這些器件設計用于在三種不同的電源下工作，并提供多種封裝尺寸和溫度等級。憑借獲得專利的一次性程序(OTP)，允許無限的存儲保質期，XU設備可以編程產生從16kHz到1500MHz的輸出頻率，分辨率低至1Hz精度。該系列設備的配置能力允許樣品和大型生產訂單的快速交付時間。進口晶振，石英晶振，瑞薩晶振，有源晶振，六腳晶振，貼片晶振，高品質晶振， 差分晶振，LVDS晶振，高精度晶振，低損耗晶振，航空航天晶振。

產品詳情

1

XUL735200.000000I,RenesasElectronics,瑞薩差分晶振，XU器件是低相位噪聲石英基鎖相環有源晶體振蕩器，支持大范圍的頻率和輸出接口類型。這些器件設計用于在三種不同的電源下工作，并提供多種封裝尺寸和溫度等級。憑借獲得專利的一次性程序(OTP)，允許無限的存儲保質期，XU設備可以編程產生從16kHz到1500MHz的輸出頻率，分辨率低至1Hz精度。該系列設備的配置能力允許樣品和大型生產訂單的快速交付時間。進口晶振，石英晶振，瑞薩晶振，有源晶振，六腳晶振，貼片晶振，高品質晶振， 差分晶振，LVDS晶振，高精度晶振，低損耗晶振，航空航天晶振。

2

Renesas瑞薩晶振,XUP535125.000JS6I8,XU差分振蕩器,6G發射器晶振參數表

Symbol Parameter Test Condition Minimum Typical Maximum Units
F 輸出頻率范圍 LVDS. 0.016 1500 MHz
LVPECL, HCSL. 0.016 670
LVCMOS. 0.016 167
頻率穩定度 Temperature = -20°C to +70°C. -20
-25
-50
-100 		+20
+25
+50
+100 		ppm
Temperature = -40°C to +85°C. -25
-50
-100 		+25
+50
+100 		ppm
Temperature = -40°C to +105°C. -50
-100 		+50
+100 		ppm
輸出負載 LVDS. 100 Ω
LVPECL. 50
HCSL. 50
LVCMOS. 15 pF
TST 啟動時間 Output valid time after VDDmeets minimum specified level. 10 ms
tR 輸出上升時間 LVDS. 275 380 ps
LVPECL. 400
HCSL. 330
LVCMOS. 3 ns
tF 輸出下降時間 LVDS. 275 380 ps
LVPECL. 400
HCSL. 330
LVCMOS. 3 ns
ODC 輸出時鐘工作周期 LVDS. 45 55 %
LVPECL. 45 55
40 60
HCSL. 45 55
LVCMOS. 45 55
40 60
TOE 輸出啟用/禁用時間 100 ns

3

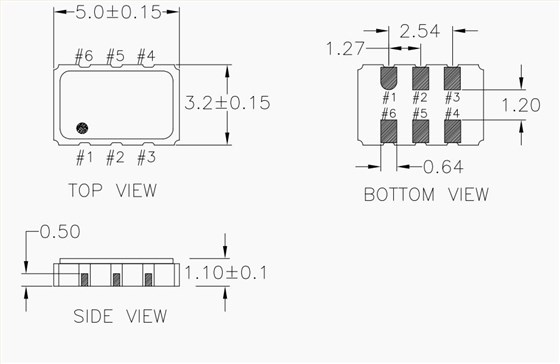

XU

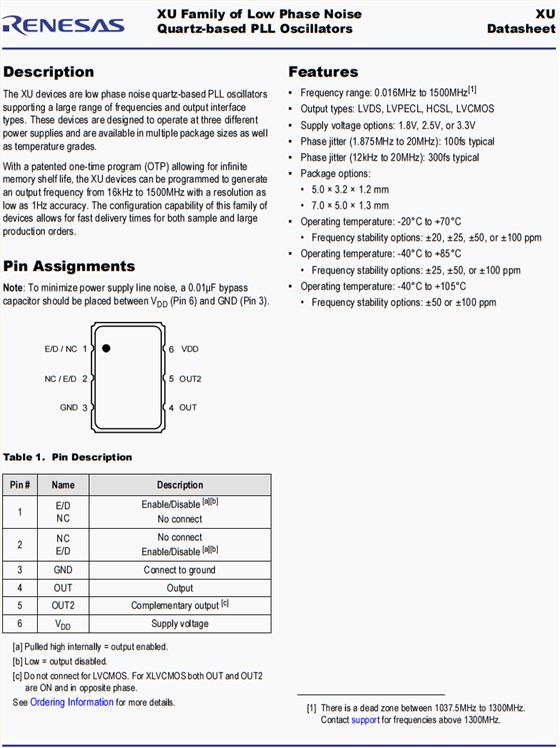

XU1

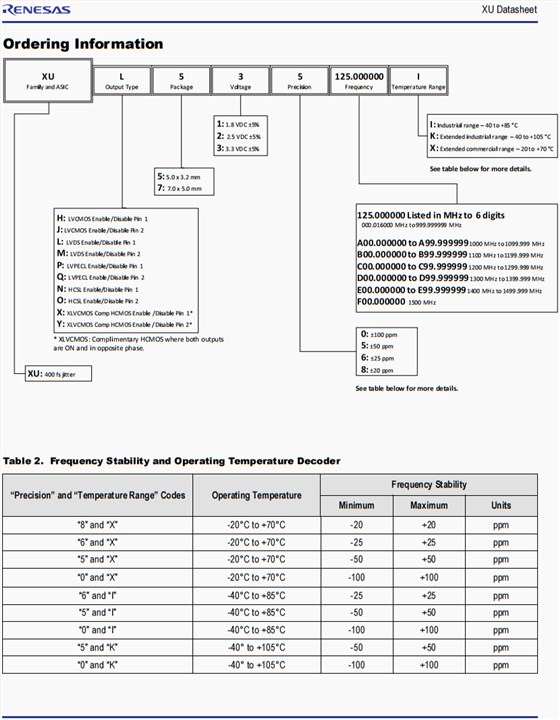

XU2

更多相關Renesas晶振型號

Renesas原廠編碼 生產商品牌 型號 頻率 輸出 電源電壓 頻率穩定度 工作溫度
XUL535100.000000I Renesas晶振 XU 100 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
XUL516100.000000I Renesas晶振 XU 100 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C
XUN535100.000000I Renesas晶振 XU 100 MHz HCSL 3.3V ±50ppm -40°C ~ 85°C
XUL536100.000000I Renesas晶振 XU 100 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
XUL536125.000000I Renesas晶振 XU 125 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
XUL536156.250000I Renesas晶振 XU 156.25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
XUH518027.120000X Renesas晶振 XU 27.12 MHz HCMOS 1.8V ±20ppm -20°C ~ 70°C
XUH538024.576000X Renesas晶振 XU 24.576 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH738016.125000X Renesas晶振 XU 16.125 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH738044.736000X Renesas晶振 XU 44.736 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH518033.333333X Renesas晶振 XU 33.333333 MHz HCMOS 1.8V ±20ppm -20°C ~ 70°C
XUH738072.000000X Renesas晶振 XU 72 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH738022.579200X Renesas晶振 XU 22.5792 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH538027.000000X Renesas晶振 XU 27 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH538022.579200X Renesas晶振 XU 22.5792 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH728025.000000X Renesas晶振 XU 25 MHz HCMOS 2.5V ±20ppm -20°C ~ 70°C
XUH538013.000000X Renesas晶振 XU 13 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH728016.125000X Renesas晶振 XU 16.125 MHz HCMOS 2.5V ±20ppm -20°C ~ 70°C
XUH538067.108864X Renesas晶振 XU 67.108864 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH538125.000000X Renesas晶振 XU 125 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH535004.000000X Renesas晶振 XU 4 MHz LVCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH515045.125000I Renesas晶振 XU 45.125 MHz LVCMOS 1.8V ±50ppm -40°C ~ 85°C
XUH525125.000000I Renesas晶振 XU 125 MHz LVCMOS 2.5V ±50ppm -40°C ~ 85°C
XUH516033.333300I Renesas晶振 XU 33.3333 MHz LVCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH536090.000000I Renesas晶振 XU 90 MHz LVCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536005.000000I8 Renesas晶振 XU 5 MHz LVCMOS 3.3V ±25ppm -40°C ~ 85°C
XUL530039.000000X Renesas晶振 XU 39 MHz LVDS 3.3V ±100ppm -20°C ~ 70°C
XUH516012.000000I Renesas晶振 XU 12 MHz LVCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH515100.000000K Renesas晶振 XU 100 MHz LVCMOS 1.8V ±50ppm -40°C ~ 105°C
XUH535008.000000K Renesas晶振 XU 8 MHz LVCMOS 3.3V ±50ppm -40°C ~ 105°C
XUH535025.000000K Renesas晶振 XU 25 MHz LVCMOS 3.3V ±50ppm -40°C ~ 105°C
XUL515644.530000I Renesas晶振 XU 644.53 MHz LVDS 1.8V ±50ppm -40°C ~ 85°C
XUL526644.530000I Renesas晶振 XU 644.53 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
XUH738020.000000X Renesas晶振 XU 20 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH538010.000000X Renesas晶振 XU 10 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH538020.000000X Renesas晶振 XU 20 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH538040.000000X Renesas晶振 XU 40 MHz HCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH535003.686000I Renesas晶振 XU 3.686 MHz LVCMOS 3.3V ±50ppm -40°C ~ 85°C
XUH510100.000000X Renesas晶振 XU 100 MHz HCMOS 1.8V ±100ppm -20°C ~ 70°C
XUH535000.127700K Renesas晶振 XU 127.7 kHz HCMOS 3.3V ±50ppm -40°C ~ 105°C
XUH535000.050000X Renesas晶振 XU 50 kHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH515020.000000K Renesas晶振 XU 20 MHz HCMOS 1.8V ±50ppm -40°C ~ 105°C
XUH535025.000000X Renesas晶振 XU 25 MHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH535100.000000X Renesas晶振 XU 100 MHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH535000.192000X Renesas晶振 XU 192 kHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH730049.700000X Renesas晶振 XU 49.7 MHz HCMOS 3.3V ±100ppm -20°C ~ 70°C
XUL535644.531250I Renesas晶振 XU 644.53125 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
XUH535017.177600X Renesas晶振 XU 17.1776 MHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH535048.000000X Renesas晶振 XU 48 MHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH510133.333000X Renesas晶振 XU 133.333 MHz HCMOS 1.8V ±100ppm -20°C ~ 70°C
XUH535000.042000X Renesas晶振 XU 42 kHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH535024.000000X Renesas晶振 XU 24 MHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH535012.000000X Renesas晶振 XU 12 MHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH525010.000000X Renesas晶振 XU 10 MHz HCMOS 2.5V ±50ppm -20°C ~ 70°C
XUH535000.044000X Renesas晶振 XU 44 kHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH535000.096000X Renesas晶振 XU 96 kHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH525024.000000X Renesas晶振 XU 24 MHz HCMOS 2.5V ±50ppm -20°C ~ 70°C
XUH530000.460800X Renesas晶振 XU 460.8 kHz HCMOS 3.3V ±100ppm -20°C ~ 70°C
XUH530000.032768X Renesas晶振 XU 32.768 kHz LVCMOS 3.3V ±100ppm -20°C ~ 70°C
XUH518090.000000X Renesas晶振 XU 90 MHz LVCMOS 1.8V ±20ppm -20°C ~ 70°C
XUL535075.000000I Renesas晶振 XU 75 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
XUH518033.000000X Renesas晶振 XU 33 MHz LVCMOS 1.8V ±20ppm -20°C ~ 70°C
XUH518124.000000X Renesas晶振 XU 124 MHz LVCMOS 1.8V ±20ppm -20°C ~ 70°C
XUN535100.000000X Renesas晶振 XU 100 MHz HCSL 3.3V ±50ppm -20°C ~ 70°C
XUH516125.000000I Renesas晶振 XU 125 MHz HCMOS 1.8V ±25ppm -40°C ~ 85°C
XUM520125.000000X Renesas晶振 XU 125 MHz LVDS 2.5V ±100ppm -20°C ~ 70°C
XUP535024.576000X Renesas晶振 XU 24.576 MHz LVPECL 3.3V ±50ppm -20°C ~ 70°C
XUH526024.000000I Renesas晶振 XU 24 MHz HCMOS 2.5V ±25ppm -40°C ~ 85°C
XUP535100.000000X Renesas晶振 XU 100 MHz LVPECL 3.3V ±50ppm -20°C ~ 70°C
XUL525100.000000X Renesas晶振 XU 100 MHz LVDS 2.5V ±50ppm -20°C ~ 70°C
XUH526016.384000I Renesas晶振 XU 16.384 MHz HCMOS 2.5V ±25ppm -40°C ~ 85°C
XUH536100.000000I Renesas晶振 XU 100 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUP535075.000000X Renesas晶振 XU 75 MHz LVPECL 3.3V ±50ppm -20°C ~ 70°C
XUO535027.000000X Renesas晶振 XU 27 MHz HCSL 3.3V ±50ppm -20°C ~ 70°C
XUH516033.333333I Renesas晶振 XU 33.333333 MHz HCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH516024.000000I Renesas晶振 XU 24 MHz LVCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH516026.000000I Renesas晶振 XU 26 MHz LVCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH516031.250000I Renesas晶振 XU 31.25 MHz LVCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH535133.300000I Renesas晶振 XU 133.3 MHz LVCMOS 3.3V ±50ppm -40°C ~ 85°C
XUH516000.032768I Renesas晶振 XU 32.768 kHz LVCMOS 1.8V ±25ppm -40°C ~ 85°C
XUL535156.250000I Renesas晶振 XU 156.25 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
XUH515033.000000K Renesas晶振 XU 33 MHz LVCMOS 1.8V ±50ppm -40°C ~ 105°C
XUH510025.000000K Renesas晶振 XU 25 MHz LVCMOS 1.8V ±100ppm -40°C ~ 105°C
XUL538750.000000X Renesas晶振 XU 750 MHz LVDS 3.3V ±20ppm -20°C ~ 70°C
XUL510125.000000I Renesas晶振 XU 125 MHz LVDS 1.8V ±100ppm -40°C ~ 85°C
XUH538033.000000X Renesas晶振 XU 33 MHz LVCMOS 3.3V ±20ppm -20°C ~ 70°C
XUH518001.843200X Renesas晶振 XU 1.8432 MHz LVCMOS 1.8V ±20ppm -20°C ~ 70°C
XUX515024.000000I Renesas晶振 XU 24 MHz HCMOS, LVCMOS 1.8V ±50ppm -40°C ~ 85°C
XUL538098.304000X Renesas晶振 XU 98.304 MHz LVDS 3.3V ±20ppm -20°C ~ 70°C
XUH518031.250000X Renesas晶振 XU 31.25 MHz LVCMOS 1.8V ±20ppm -20°C ~ 70°C
XUH536025.000000I Renesas晶振 XU 25 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536033.333330I Renesas晶振 XU 33.33333 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536030.000000I Renesas晶振 XU 30 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536025.001250I Renesas晶振 XU 25.00125 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH735148.500000I Renesas晶振 XU 148.5 MHz HCMOS 3.3V ±50ppm -40°C ~ 85°C
XUH516100.000000I Renesas晶振 XU 100 MHz HCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH536025.600000I Renesas晶振 XU 25.6 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH526000.828000I Renesas晶振 XU 828 kHz HCMOS 2.5V ±25ppm -40°C ~ 85°C
XUH736025.000000I Renesas晶振 XU 25 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536033.333300I Renesas晶振 XU 33.3333 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH516030.000000I Renesas晶振 XU 30 MHz HCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH536125.000000I Renesas晶振 XU 125 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536050.000000I Renesas晶振 XU 50 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH715133.330000I Renesas晶振 XU 133.33 MHz HCMOS 1.8V ±50ppm -40°C ~ 85°C
XUH716125.000000I Renesas晶振 XU 125 MHz HCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH536000.032768I Renesas晶振 XU 32.768 kHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536000.050000I Renesas晶振 XU 50 kHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH536010.000000I Renesas晶振 XU 10 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH515160.000000I Renesas晶振 XU 160 MHz HCMOS 1.8V ±50ppm -40°C ~ 85°C
XUH535156.250000I Renesas晶振 XU 156.25 MHz HCMOS 3.3V ±50ppm -40°C ~ 85°C
XUH516026.214400I Renesas晶振 XU 26.2144 MHz HCMOS 1.8V ±25ppm -40°C ~ 85°C
XUH536020.000000I Renesas晶振 XU 20 MHz HCMOS 3.3V ±25ppm -40°C ~ 85°C
XUH516120.000000X Renesas晶振 XU 120 MHz HCMOS 1.8V ±25ppm -20°C ~ 70°C
XUH535000.034133I Renesas晶振 XU 34.133 kHz HCMOS 3.3V ±50ppm -40°C ~ 85°C
XUH516025.000000X Renesas晶振 XU 25 MHz HCMOS 1.8V ±25ppm -20°C ~ 70°C
XUM516156.250000I Renesas晶振 XU 156.25 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C
XUL538161.132813X Renesas晶振 XU 161.132813 MHz LVDS 3.3V ±20ppm -20°C ~ 70°C
XUH526110.000000I Renesas晶振 XU 110 MHz LVCMOS 2.5V ±25ppm -40°C ~ 85°C
XUH530000.500000I Renesas晶振 XU 500 kHz HCMOS 3.3V ±100ppm -40°C ~ 85°C
XUH515100.000000I Renesas晶振 XU 100 MHz HCMOS 1.8V ±50ppm -40°C ~ 85°C
XUH535000.100000I Renesas晶振 XU 100 kHz HCMOS 3.3V ±50ppm -40°C ~ 85°C
XUH525050.000000I Renesas晶振 XU 50 MHz HCMOS 2.5V ±50ppm -40°C ~ 85°C
XUH515025.000000I Renesas晶振 XU 25 MHz HCMOS 1.8V ±50ppm -40°C ~ 85°C
XUH535156.257000X Renesas晶振 XU 156.257 MHz HCMOS 3.3V ±50ppm -20°C ~ 70°C
XUH515028.636360I Renesas晶振 XU 28.63636 MHz HCMOS 1.8V ±50ppm -40°C ~ 85°C
XUH525025.000000I Renesas晶振 XU 25 MHz HCMOS 2.5V ±50ppm -40°C ~ 85°C
XUH536025.001250X Renesas晶振 XU 25.00125 MHz HCMOS 3.3V ±25ppm -20°C ~ 70°C
XUH515125.000000I Renesas晶振 XU 125 MHz HCMOS 1.8V ±50ppm -40°C ~ 85°C
